Induction Brazing Copper Pipe: Revolutionizing Copper Pipe Joints
Understanding Induction Brazing for Copper Pipes
Induction brazing is a revolutionary process that uses high-frequency electromagnetic fields to heat copper pipes directly at the jointing area, effectively connecting two copper pipes. By precisely controlling the output power and heating speed, induction brazing offers exceptional temperature control, making it an ideal solution for high-quality copper pipe brazing across a range of industries.
Whether you’re involved in HVAC systems, refrigeration, plumbing, automotive, or electronics, the Induction Brazing Copper Pipe machine is the better choice due to its efficiency, safety, and environmental benefits. By understanding how induction brazing works and comparing it with traditional methods like flame brazing, you can optimize your brazing operations and achieve stronger, cleaner joints.
In this article, we will delve into how induction brazing machines perform the brazing process for copper pipes, providing detailed insights into their working principles, advantages, and applications. Additionally, we will discuss how to select the best machine based on your unique requirements.
Induction brazing is a highly efficient process that uses electromagnetic fields to generate heat directly in the joint area of copper pipes. Once the joint reaches the necessary temperature, the brazing process is completed. The process works as follows:

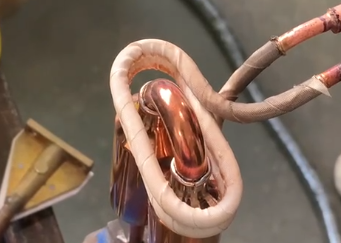

High-frequency currents are applied to a coil surrounding the copper pipe joint, generating a magnetic field.
This magnetic field induces a current in the copper, heating it to the required brazing temperature.
The heat is localized and precisely controlled, ensuring the brazing material, typically a filler metal, flows perfectly and forms a durable bond between the copper pipe and fitting.

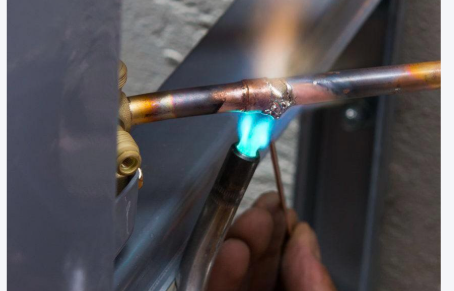

In comparison, flame brazing, a traditional method, uses an open flame to heat the copper pipe joint, and this comes with several challenges:
Challenges of Flame Brazing:
Inconsistent Heating: Manual operation and slow heating can lead to uneven heat, which results in weak joints.
Larger Heat-Affected Zone (HAZ): Flame brazing often spreads heat over the joint area, causing more oxidation.
Safety and Environmental Risks: Open flames present fire hazards and release harmful emissions like carbon monoxide.
Advantages of Induction Brazing over Flame Brazing
Precise Temperature Control
One of the key advantages of an Induction Brazing Copper Pipe machine is its ability to provide highly accurate and localized heating. Unlike flame brazing, where heat is manually applied, induction brazing uses electromagnetic induction to heat only the joint area. This ensures that the copper pipe and fitting reach the exact temperature required for brazing, resulting in stronger and more reliable joints. The precision of induction brazing machines limits the risk of overheating or underheating, which ensures the quality of the joint.
Minimal Heat-Affected Zone (HAZ)
With induction brazing, the heat is confined to the joint area, which reduces the size of the heat-affected zone (HAZ). This ensures that the surrounding copper pipe material is not exposed to excessive heat, preserving its integrity and maintaining its original properties. The result is a high-quality brazed joint that doesn’t compromise the strength or durability of the copper pipe.
Safer and Cleaner Process
Unlike flame brazing, which involves open flames and harmful emissions, induction brazing eliminates the need for flames, making it a cleaner and safer option. There are no risks of fire, and no harmful gases are released during the process. Additionally, induction brazing is more energy-efficient and environmentally friendly, as it doesn’t rely on combustion to generate heat.
Induction Brazing Machines for Copper Pipe Applications
Copper Pipe Sizes and Joint Types
When selecting an Induction Brazing Machine for Copper Pipe applications, it’s essential to consider the pipe sizes and joint types the machine can handle. Induction brazing is versatile, capable of brazing pipes with diameters ranging from small (6 mm) to large (100 mm or more). These machines are commonly used in HVAC, plumbing, and industrial applications where high precision is required.
Common Copper Pipe Sizes:
Small Diameter Pipes: 6 mm to 25 mm (ideal for residential plumbing and small HVAC systems)
Medium Diameter Pipes: 25 mm to 50 mm (used in industrial plumbing and HVAC systems)
Large Diameter Pipes: 50 mm to 100 mm and beyond (for large-scale industrial applications like power plants)
Choosing the right induction brazing machine requires ensuring that the machine’s heating zone and coil design are suitable for the intended pipe diameters. Larger pipes typically require custom coils and higher power output to achieve effective brazing.
Common Joint Types:
Copper-to-Copper Joints: These are the most common and are used in HVAC, plumbing, and refrigeration systems.
Copper-to-Brass Joints: Often used in HVAC and automotive applications, where copper pipes are brazed to brass fittings or valves.
Copper-to-Other Metals: Induction brazing is also suitable for joining copper pipes to materials like aluminum or stainless steel, which require specific settings and filler metals.
By selecting the right induction brazing machine and matching it to your application needs, you can ensure high-quality, leak-free joints every time.

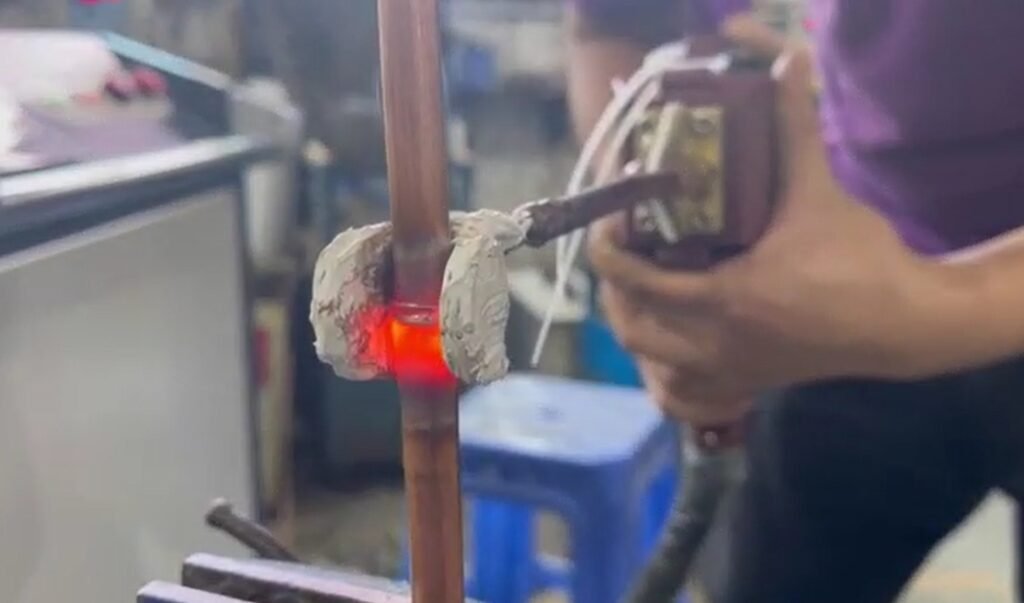

Induction Brazing Video
Principle of Induction Heating and Key Machine Components
Induction Heating Principle

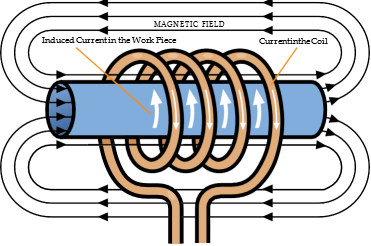

The induction brazing process works by passing an alternating current (AC) through an induction coil, which generates an electromagnetic field. This field induces an electric current (eddy current) in the copper pipe, causing it to heat up due to the material’s resistance. The key advantage of this method is that it heats the copper pipe directly, allowing for precise control of the heating process.
Key Machine Components
The Induction Brazing Machine for Copper Pipe consists of several critical components:
Power Supply: Delivers the high-frequency current needed for induction heating, with adjustable power output for different applications.
Induction Coil: The coil generates the magnetic field that heats the copper pipe. Coils are available in different designs depending on the size and shape of the pipe.
Cooling System: Prevents overheating of the coil and power supply by using water-cooled systems to maintain stable performance.
Control Unit: Allows operators to set key parameters such as power, frequency, and dwell time, ensuring repeatable results for high-quality brazing.
Optimizing the Brazing Process with Induction Brazing Machines
Process Optimization
Optimizing your induction brazing process involves adjusting power and frequency settings to suit different pipe sizes and joint configurations. Larger pipes require higher power and lower frequencies, while smaller pipes require higher frequencies and lower power to avoid overheating.
By fine-tuning these parameters and adjusting dwell time, you can achieve the best brazing results while minimizing energy consumption and improving production efficiency.
Quality Control and Inspection
Quality control is vital in ensuring the brazed joints meet industry standards. Methods like visual inspection, leak testing, and non-destructive testing (NDT) are used to check the integrity of brazed joints. Real-time temperature monitoring and data logging capabilities can also help ensure consistent results, especially in high-volume production environments.
Choosing the Right Induction Brazing Machine for Copper Pipes
In conclusion, Induction Brazing Machines for Copper Pipe offer numerous advantages over traditional flame brazing, including higher precision, faster heating, and a safer, cleaner process. By selecting the right machine based on your specific application needs, you can optimize your brazing operations and achieve consistent, high-quality results.
Contact us today to learn more about how our Induction Brazing Machines for Copper Pipes can improve your production process. Our experts are ready to guide you in selecting the ideal brazing machine for your specific needs. Get in touch for a free consultation and start optimizing your brazing operations now!
