Induction Annealing Machine for Steel Strip: A Complete Guide to Process, Selection, and Pitfalls

Induction Annealing Machine for Steel Strip: A Complete Guide to Process, Selection, and Pitfalls

Induction annealing is a critical process in the production of cold-rolled and surface-treated steel strips, enabling precise temperature control, rapid thermal cycles, and integration within continuous processing lines. Compared to conventional heating methods, induction annealing for steel strip provides superior surface quality, energy efficiency, and throughput, especially in high-demand sectors such as automotive, appliance, and precision tubing.

However, optimal results depend heavily on selecting the right induction annealing machine for steel strip applications. Machine parameters such as frequency, coil geometry, power capacity, and system responsiveness must be tailored to the strip’s material composition, width, thickness, and line speed. Inadequate matching between process requirements and equipment configuration often results in poor microstructure, color variation, or unstable production.

This blog outlines key technical considerations for selecting and integrating induction annealing systems. With over three decades of engineering experience, LJInduction provides fully integrated induction annealing systems for steel strips, designed to meet the specific thermal, mechanical, and process stability requirements of continuous production lines.

Induction Annealing for Steel Strip: Can It Really Deliver Consistent and Flexible Results?

Induction annealing for steel strip plays a critical role in ensuring the metallurgical quality and dimensional stability required by modern production standards. As steel strips are widely used in high-precision applications — including automotive body panels, welded tubes, and appliance enclosures — the annealing process directly influences surface finish, mechanical strength, and downstream workability. Compared with conventional furnace-based methods, induction technology offers shorter heating cycles, better energy efficiency, and easier integration with continuous lines, making it especially suited for flexible, high-output production.

Induction annealing machines for steel strip have evolved to meet the dual demands of thermal consistency and production flexibility. At LJInduction, each induction annealing system for steel strip is designed around real production variables — such as strip width, thickness, alloy type, and line speed — to ensure precise and repeatable results. Through custom coil architecture, adaptive power control, and closed-loop temperature feedback, our induction annealing equipment for steel strip delivers uniform treatment even under dynamic line conditions. This system-level approach helps manufacturers maintain high product quality while responding quickly to changing order requirements, without sacrificing reliability or throughput.

Understanding the True Capabilities of Induction Annealing for Steel Strip

Induction annealing for steel strip is more than a heating method — it is a precisely controlled thermal treatment designed to modify the microstructure of the strip in-line, without interrupting production flow. The process primarily serves two key functions: softening the material after cold rolling (full annealing), and stress relief before forming or welding (recrystallization annealing). In both cases, the goal is to restore ductility, ensure dimensional stability, and achieve uniform mechanical properties across the width and length of the strip.

Within a well-engineered induction annealing system for steel strip, heat is applied directly and evenly through electromagnetic induction, allowing for precise temperature targeting at speeds of up to several meters per second. This eliminates many of the inefficiencies and variability seen in conventional furnace-based lines. Controlled atmosphere modules can also be integrated to prevent surface oxidation, while advanced feedback control ensures repeatability even with variations in coil-to-strip distance or strip tension. The result is a compact, responsive, and highly scalable solution — ideal for continuous strip processing lines that require both consistency and throughput.

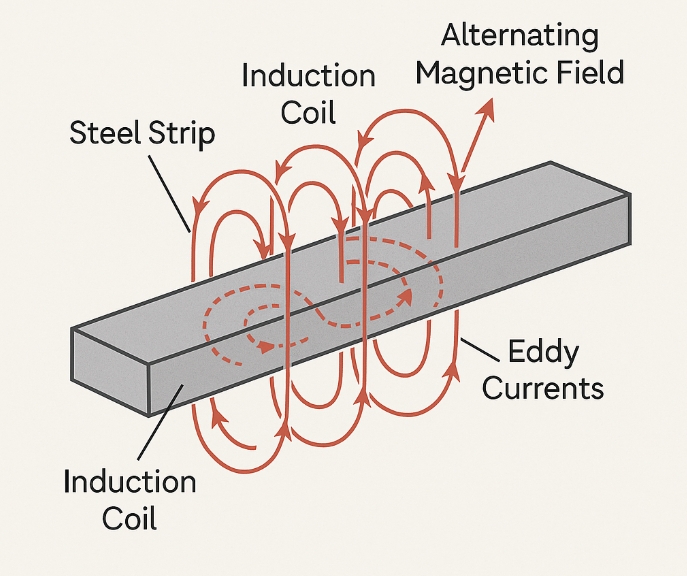

Induction Annealing for Steel Strip: How Induction Heating Works Inside the Coil?

Inside an induction annealing machine for steel strip, the heating takes place as the strip passes through a precisely engineered induction coil. The coil generates an alternating electromagnetic field, which induces electrical currents — known as eddy currents — within the steel strip itself. These currents generate heat directly inside the material, allowing for rapid and uniform temperature rise without heating the surrounding environment.

Unlike conventional methods that rely on surface heat transfer, induction annealing for steel strip works from within the metal, enabling faster thermal response and tighter control. However, the performance of this process is critically dependent on the design and manufacturing quality of the coil. Improper coil geometry — whether in the number of turns, magnetic focus, or physical alignment — can lead to overcurrent, uneven thermal distribution, or unnecessary energy loss. These issues are often invisible during initial setup but can significantly affect long-term performance and process consistency.

At LJInduction, we leverage over 30 years of application experience and a dedicated team of coil engineers to ensure every induction coil is custom-designed to match the client’s strip width, material type, and line parameters. This expertise allows us to avoid common pitfalls and deliver systems that are stable, efficient, and fully optimized for industrial-scale annealing.

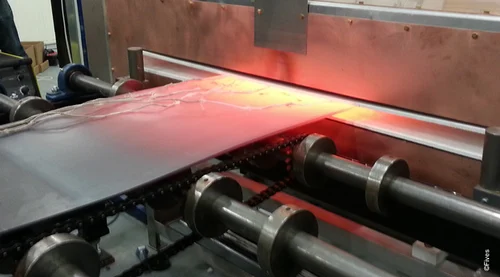

As the strip moves through a properly matched coil, it is continuously heated to the target annealing temperature, held for a precise dwell time (if required), and then cooled in a controlled manner. The result is a clean, compact, and reliable inline heating solution — engineered for consistency.

Induction Annealing for Steel Strip: Is It Truly Capable of Full-width Annealing?

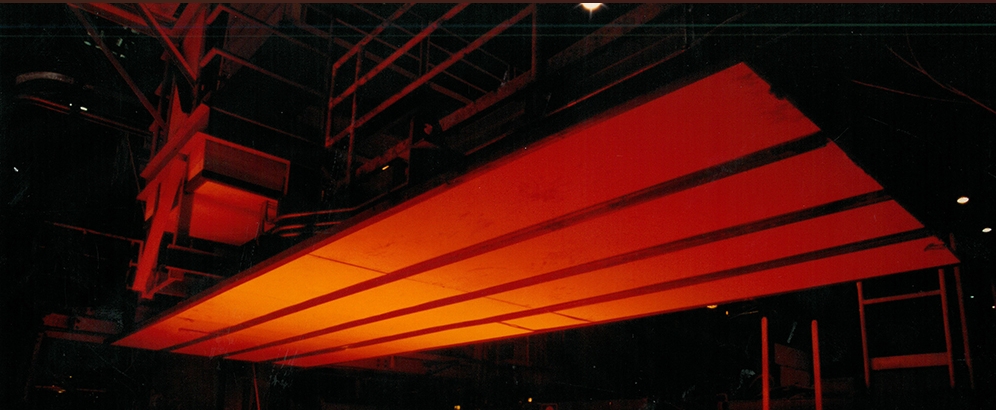

Induction annealing systems for steel strip are specifically designed to achieve full-width, uniform heating — even across wide or multi-line configurations. Unlike point-source heating, the induction coil generates an electromagnetic field that envelops the entire width of the strip, inducing eddy currents across the full cross-sectional area. The result is even energy distribution, provided the coil is correctly engineered for the strip’s width, edge conditions, and positional stability during line operation.

For production lines requiring full-width annealing — whether of a single wide strip or multiple narrow strips arranged in parallel — induction annealing equipment for steel strip can be configured with multi-turn or split coil designs. These setups ensure that thermal exposure remains balanced from edge to edge and between lanes, even under variable speeds. At LJInduction, we have successfully delivered systems capable of annealing steel strips up to 1600mm in full width, as well as multi-strip lines with 3–5 lanes, all with consistent thermal performance and process repeatability.

Induction Annealing for Steel Strip: What About Uniformity and Real-Time Adjustments?

Induction annealing for steel strip demands precise and consistent temperature control across both the width and length of the material — especially in high-speed, multi-lane, or wide-strip applications. Uneven heating can lead to poor mechanical properties, surface color variation, or downstream forming issues. The challenge becomes even greater when line speeds fluctuate or material properties shift continuously during production.

To meet these demands, LJInduction systems are powered by the DSGP series of fully digital intelligent induction heating controllers, developed in-house based on advanced DSP + CPLD architecture. Unlike typical “pseudo-digital” solutions that rely on DSP plus analog circuits, this platform is digital from end to end — from control signal generation, frequency tracking, and PID regulation, to multi-channel feedback and communication protocols. Signal transmission via optical fiber further enhances anti-interference capability and control responsiveness.

The result is a self-adaptive system that automatically identifies load changes, tracks frequency in real time, and adjusts output parameters without manual tuning. Even when coils are changed or strip properties vary, the controller can assess matching conditions and provide real-time feedback on the HMI — reducing reliance on operator intervention. Coupled with high-precision infrared pyrometers, the induction annealing system for steel strip becomes a smart, closed-loop heating solution that ensures consistent results under dynamic production conditions.

Induction Annealing for Steel Strip: Can It Handle Frequent Strip Specification Changes?

Induction annealing for steel strip is often applied in continuous processing lines where the material undergoes repeated cycles of cold rolling and annealing. As the strip is progressively thinned, its thermal requirements shift — sometimes multiple times in a single production run. Since the line runs continuously, frequent manual adjustments to the heating system are neither practical nor reliable.

LJInduction addresses this challenge with a unified control architecture built around a fully digital mainboard, capable of adapting across a wide frequency range (0.5–150 kHz) and supporting both series and parallel resonant circuits. The system features a proprietary phase-locked loop algorithm that tracks phase based on real-time load impedance, ensuring the power supply always operates at optimal resonance, regardless of changing load conditions.

Combined with infrared pyrometer feedback, this setup allows the induction annealing machine for steel strip to self-adjust power, frequency, and operating state in real time. Coil changes, material variations, and line speed fluctuations are handled automatically, enabling smooth, uninterrupted production with consistent thermal results — all without operator intervention.

Induction Annealing for Steel Strip: Heating Uniformity and Throughput Improvements

Induction annealing for steel strip relies not only on precise coil design and power control, but also on accurate, real-time temperature monitoring. This is where high-resolution infrared pyrometers become essential. By continuously measuring the surface temperature of the moving strip, these sensors provide feedback to the induction controller — enabling the system to make micro-adjustments to power output and frequency in milliseconds.

In LJInduction’s systems, the pyrometer is tightly integrated with the induction annealing equipment for steel strip, forming a closed-loop control architecture. When the temperature reading deviates from the target range — whether due to line speed fluctuation, material change, or environmental disturbance — the system immediately corrects the heating parameters. This dynamic adjustment ensures consistent metallurgical results across the entire strip length, reduces defect rates, and allows the line to run at higher speeds without compromising quality.

The result is a solution that not only improves heating uniformity, but also maximizes throughput efficiency — especially valuable in high-output continuous processing environments where downtime and manual tuning are unacceptable.

How Advanced Systems Make Induction Annealing for Steel Strip Reliable

Reliability in induction annealing for steel strip depends not only on stable heating performance but also on the system’s ability to adapt intelligently to changing production parameters. As line speeds fluctuate, strip widths vary, and different coils are brought into operation, maintaining uniform results requires a control architecture that is both responsive and robust.

In most standard systems, such responsiveness is limited by analog control structures and narrow frequency ranges. However, advanced solutions — such as those developed by LJInduction — employ unified digital control boards capable of managing both series and parallel resonant circuits within a 0.5–150kHz range. These systems feature fully digital phase-locking algorithms that track real-time load characteristics and maintain resonance without manual tuning. All signals are transmitted via optical fiber, significantly enhancing resistance to interference and enabling faster system reaction.

Induction Annealing for Steel Strip: Historical Data and Adaptive Feedback Loops

LJInduction integrates high-speed infrared pyrometers with real-time feedback loops, allowing the heating system to automatically correct for temperature drift, material changes, or coil variations — even at high throughput. The system’s closed-loop control architecture is backed by proprietary algorithms that analyze load conditions dynamically and adjust power and frequency accordingly.

In addition, historical production data, fault logs, and recipe memory functions allow the system to support repeat orders and enable data-driven optimization — capabilities typically absent in conventional induction systems but fully realized in LJInduction’s platform.

Induction Annealing for Steel Strip: From Manual Tuning to Digital Recipes

Traditional equipment often relies on manual tuning and operator experience when switching between materials or coil setups. In contrast, LJInduction’s systems are designed for automated adaptation. The controller detects the load type, applies the appropriate parameters, and completes a full startup sequence — including frequency and power matching — in as little as 0.2 seconds.

Digital recipe libraries stored within the HMI enable operators to switch between product types quickly and with confidence. Fault protection features, including feedback line auto-recognition and overcurrent detection, further enhance operational safety. These capabilities reflect LJInduction’s engineering depth and commitment to intelligent, factory-ready solutions.

In addition, an optional energy traceability module is available, enabling process engineers to monitor and record energy usage by batch or shift — supporting production diagnostics, efficiency analysis, and quality assurance audits.

This article has outlined the key technical considerations behind induction annealing for steel strip, with a focus on heating mechanisms, process control, and system-level integration. If you have questions about any of the topics discussed — from coil matching to real-time adjustments — we welcome you to reach out directly.

Of course, heating is only one part of a complete thermal process. Aspects such as cooling methods, quenching configuration, and downstream integration often vary significantly depending on the material, geometry, and industry application. For deeper insights or tailored recommendations, our technical engineering team is available to provide one-on-one consultation based on your specific production needs.

Induction Annealing for Steel Strip: Why It Fails — And How Robust Design Prevents It

Despite its efficiency and precision, induction annealing for steel strip is not a trivial process. In real-world applications, even small deviations in system configuration or plant conditions can cause significant defects. Understanding the common failure mechanisms is critical to building a stable and long-lasting solution.

The most frequent — and most damaging — issue is poor temperature uniformity. Inconsistent heating across the strip width or length can lead to hard spots, color variation, or downstream processing failure. As discussed earlier, achieving thermal balance requires precise control over power, frequency, and feedback loops — and any deviation can throw off the process.

Another critical factor is unstable input power. When incoming voltage fluctuates, the power output may drop or spike unexpectedly, leading to non-uniform heating. LJInduction systems incorporate internal voltage regulation modules to stabilize input fluctuations, helping maintain consistent energy delivery to the coil.

Interestingly, industry data shows that over 85% of induction heating failures are related to cooling water issues — including flow interruptions, blockages, or contamination. Improper cooling not only reduces efficiency but can also cause severe damage to sensitive components. To address this, LJInduction systems adopt a fully separated water–electric layout within the cabinet, significantly reducing short-circuit risk and simplifying maintenance.

Another common failure source is circuit board damage caused by conductive dust, especially in environments with high oil mist or metal particulate matter — like quenching lines. These fine particles can settle on PCB surfaces and cause shorts under unstable voltage conditions. To mitigate this, LJInduction adopts a Rittal-style sealed cabinet design, equipped with heat exchangers and an internal air circulation system. This prevents external air exchange, blocks conductive dust, and significantly improves long-term reliability.

Designed to Cooperate — Interfacing With the Rest of the Line

Induction heating equipment rarely operates in isolation. In continuous production environments, integration and communication with upstream and downstream machinery is just as important as thermal precision.

LJInduction systems feature a streamlined human-machine interface, with one-button start/stop and intuitive parameter setting. Power adjustment can be managed via a local potentiometer or through a 0–10V external analog signal from the production line.

In terms of connectivity, the system offers a full set of standard I/O interfaces to support dual-station switching, external protection interlocks, and remote control. For safety and ease of maintenance, a 36V low-voltage load test function is included — allowing users to test coil resonance and load conditions without exposing personnel or hardware to operating voltages.

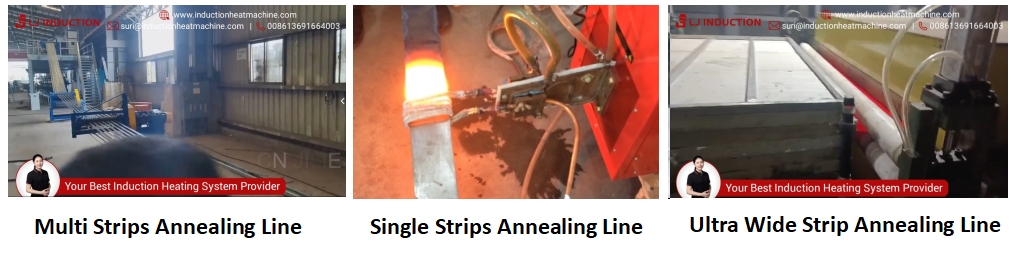

Induction Annealing for Steel Strip: Some Cases of Our Induction Annealing System Supporting Modern Strip Lines

Over the past three decades, LJInduction has delivered customized induction annealing systems for steel strip across a wide range of production environments — from precision tube mills to high-speed automotive-grade strip lines. These systems are designed to integrate seamlessly into both new and retrofit lines, with proven results in terms of heating consistency, line compatibility, and long-term reliability.

Frequently Asked Questions About Induction Annealing for Steel Strip

Q1. Does the system include a cooling unit? What cooling method is recommended?

Cooling configuration depends on your specific line layout and process needs. LJInduction can provide matching water-cooled chillers or connect to your existing industrial water system. For critical lines, we recommend closed-loop water systems with flow monitoring and alarms to ensure stable cooling performance.

Q2. How do I choose the right power level or frequency range?

Our engineering team offers free application reviews. Based on your strip width, thickness, material grade, and line speed, we’ll recommend the appropriate frequency (typically within 0.5–150 kHz) and power level, along with the matching coil and control architecture.

Q3. Can your induction annealing system be integrated into existing lines?

Yes. Many of our systems are installed as retrofits. We offer compact cabinet designs and flexible I/O for integration with legacy PLCs, sensors, and external protection circuits. Send us your line diagram — we’ll help evaluate mechanical and electrical fit.

Q4. Is sample testing available before I commit to an order?

Absolutely. We welcome sample strip material for heating trials in our test lab. We’ll provide you with thermal results, system recommendations, and video documentation. On-site demo machines may also be available depending on your region.

Q5. What support is provided after installation?

All systems come with commissioning support and operator training. Remote diagnostics, recipe updates, and long-term service plans are available for continued optimization. Most of our clients maintain contact with our engineers for ongoing system tuning and expansion.

Ready to Explore the Right Induction Annealing System for Your Strip Line?

Designing a reliable and efficient induction annealing system for steel strip requires more than just selecting a power rating — it’s about matching your process, material, and production goals with the right technology.

If you’re planning a new line, upgrading an existing setup, or facing challenges with heating consistency, our engineering team is available for direct consultation. Whether it’s strip width, line speed, cooling integration, or control system logic, we can help evaluate your needs and provide tailored recommendations.

To discuss your project in detail or send us your strip specifications for evaluation, please email us directly.
