Efficient, precise, and energy-saving induction heating solutions for bar ends in forging, upsetting, and other metal processing operations.
Induction heating systems for localized bar end heating, delivering fast, uniform, and controllable temperatures for forging, upsetting, bolt making, mining tools, steering racks, and other metalworking applications.

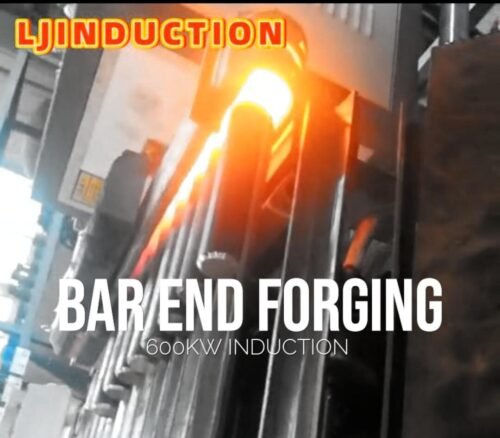

An induction bar end heating machine is a specialized heating system that uses electromagnetic induction to heat only the ends of bars, rods, or billets for forging, upsetting, and other forming operations. It is designed for localized heating, which makes it more efficient than methods that heat the full workpiece when only the end requires deformation.
The machine works by generating a magnetic field through induction coils. This creates eddy currents in the bar end, causing it to heat rapidly and in a controlled way. Because only the required end section is heated, the process provides more precise and efficient heating than traditional furnace-based methods.
Compared with gas or oil-fired furnaces, induction bar end heating offers more localized heating, lower energy consumption, and no open flames. Compared with full-bar heating systems, it minimizes energy waste and reduces heating time by focusing only on the bar end. This is why it is widely used in forging, upsetting, bolt making, mining tools, and automotive components such as steering racks.
Category | Supported Range | Notes |
Bar Types | Solid bars, hollow bars, stepped bars | Tailored heating design available for different bar geometries |
Materials | Carbon steel, alloy steel, stainless steel, selected non-ferrous metals | Final suitability depends on process and heating target |
Customization | Material, size, shape, production rate | System can be configured to match real application requirements |
This allows customers to quickly evaluate whether the machine is suitable for their bar type and material, while also showing that the system can be customized for different production needs.
| Parameter (CN / EN) | Specification / Value |
|---|---|
| General / 基本信息 | |
| Product Name / 产品名称 | Induction Bar End Heating Machines |
| Model / 型号 | Custom, based on bar end heating application |
| Applications / 应用类别 | Forging, upsetting, bolt making, mining tools, steering racks, and other localized end-heating processes |
| Operating Principle / 工作原理 | Electromagnetic induction for localized heating of bar ends only |
| Key Process Parameters / 关键工艺参数 | |
| Bar Diameter Range / 适用棒材直径范围 | Selected according to bar material, section size, and heating requirement |
| Bar Length Range / 适用棒材长度范围 | Matched to loading method, handling layout, and production setup |
| Heated End Length / 加热端部长度 | Customized according to upsetting, forging, or forming requirement |
| Heating Temperature Range / 加热温度范围 | Determined by material grade and required end-forming process |
| Heating Time / 加热时间 | Depends on bar material, diameter, heated length, and required cycle time |
| Temperature Control Accuracy / 温控精度 | Depends on sensor arrangement, control logic, and process setup |
| Electrical & Output / 电气与输出 | |
| Input Voltage / 输入电压 | 380V / 415V / 440V, 3-phase, customizable according to local power supply |
| Power Range / 功率范围 | Selected according to bar material, bar diameter, heated length, and throughput |
| Frequency Range / 频率范围 | Matched to required heating depth, heating speed, and bar end geometry |
| Output Configuration / 输出配置 | Customized according to cycle time and production layout |
| Auto-Tuning / 自动调谐 | Available |
| Control & Monitoring / 控制与监测 | |
| Control Mode / 控制方式 | PLC-based control with recipe management |
| Temperature Monitoring / 温度监测 | Infrared / pyrometer-based monitoring with closed-loop control available |
| Recipe Storage / 配方存储 | Available for different bar sizes, materials, and target temperatures |
| Data Logging / 数据记录 | Optional real-time recording for temperature, cycle time, alarms, and process data |
| Coils & System Matching / 线圈与系统匹配 | |
| Coil Design / 线圈设计 | Customized according to bar diameter, heated end length, and application target |
| Coil Types / 线圈类型 | Single-turn, multi-turn, and other application-based bar end heating coils |
| Production Layout / 产线布局 | Manual, semi-automatic, or automatic end-heating system integration |
| Cooling Requirements / 冷却要求 | |
| Cooling Method / 冷却方式 | Water cooling system or chiller |
| Cooling Capacity / 冷却能力 | Selected according to power level, coil design, and duty cycle |
| Water Quality & Flow / 水质与流量要求 | Specified according to final machine configuration |
| Safety & Protection / 安全与保护 | |
| Electrical Protection / 电气保护 | Overcurrent, overvoltage, overheating, and cooling interlocks available |
| Safety Functions / 安全功能 | Alarm system, emergency stop, and protection logic configured according to project requirements |
Induction bar end heating machines are designed to heat the required bar end quickly, uniformly, and in a controllable way. Because only the end of the workpiece is heated, the process is typically faster and more energy-efficient than traditional full-length or furnace heating methods.
Key Capability | Process Value |
Rapid bar end heating | Higher throughput |
Localized heat application | Lower energy waste |
Uniform heated end zone | Better forming consistency |
Continuous temperature feedback | More accurate and stable control |
To maintain temperature uniformity, the system uses optimized coil design, multi-zone heating where needed, and real-time temperature feedback with control adjustment. This helps reduce overheating, underheating, and surface oxidation while improving repeatability.
Coil design is critical in induction bar end heating because it directly affects heating speed, efficiency, and temperature uniformity. The system can use single-turn or multi-turn coils depending on the bar size and application, and the final coil design is matched to the bar material, diameter, heated length, and required process result.
Key Question | Practical Answer |
Can the same coil be used for different bar sizes? | Sometimes for a limited size range, but the best heating quality usually requires a coil matched to the actual bar dimensions |
How long does it take to change the coil? | Coils can be swapped quickly for different bar sizes and materials |
Are special tools needed? | The system can be designed for quick coil changeover without special tools |
What affects temperature uniformity? | Coil type, bar diameter, material, heated length, and process settings |
An induction bar end heating machine is normally provided as a complete heating system rather than as a single standalone device. A standard system typically includes the induction power supply, induction coil, cooling system, control panel with HMI, and temperature monitoring system.
Standard Components | Main Role |
Induction power supply | Supplies heating power |
Induction coil | Heats the bar end through electromagnetic induction |
Cooling system | Maintains stable operation |
Control panel and HMI | Supports process control and operation |
Temperature monitoring system | Helps ensure heating consistency |
Configuration Options | Purpose |
Single-station, multi-station, or continuous layouts | Matched to throughput and layout needs |
Manual or automated loading / unloading | Selected according to labor and production goals |
Integration with existing equipment | Supports retrofit and line expansion |
Can be integrated with
Available automation levels
Suitable for upgrade projects
High-quality advantages
Improved reproducibility of temperature
Diminished development of scales
Decarburization danger is reduced
More reliable forging circumstances
Improved readiness for heat treatment downstream
Value in metallurgy
A more consistent microstructure
Improved uniformity of hardness following downstream treatment
Reduced chance of localized overheating
Decreased likelihood of deformation due to uneven heating
Common issues that this lessens
Inadequate heating-related cracks
Transitional soft areas
Variations in hardness
Typical problems this helps reduce
Overoxidation and loss of substance
Customer-facing outcomes
Improved uniformity in forging
Dimensions that are more stable after forging
Decreased rework and scrap
